RACK MOUNTED FIXED & AGILE HEAD-END HEAD END MODULATORS & DEMODULATORS



RACK MOUNTED FIXED CHANNEL HEAD-END MODULATORS
FEATURES: FIX CHANNEL MODULATOR MODELS HPM55 & HSM55
ADJACENT CHANNEL PERFORMANCE [except sub-band] PLL CONTROLLED OSCILLATOR LOW OUT-OF-BAND NOISE COMPLIES WITH FCC OFFSETS & ACCURACY REQUIREMENTS INCLUDES NEW VIDEO LOSS PAIR FILTER T18-T14 AVAILABLE [HPM]

fixed channel head-end head end rack mounted modulator hpm55

MODEL HPM55 - FIXED CHANNEL RACK MOUNTED MODULATOR

CHANNELS 2-36 AVAILABLE

MODEL# HPM55-* is an adjacent channel audio video modulator specifically designed for head-end head end systems requiring proven performance. The HPM55 internal filters provide sharp VSB rejection for adjacent channel operation while maintaining similar C/N and video response found in more expensive SAW modulators.

WEB PRICE: $130.00 EACH

rack mounted fixed channel modulator with additional saw filtering hsm55

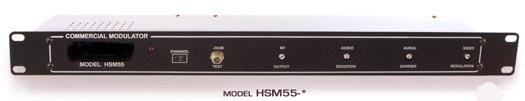

MODEL HSM55 - FIXED CHANNEL RACK MOUNTED MODULATOR WITH ADDITIONAL SAW FILTERING

CHANNELS 2-110 AVAILABLE

THE HSM55-* is the same proven modulator as the HPM55-* with additional SAW filtering providing unparalleled adjacent channel performance.

WEB PRICE: $166.00 EACH





HMA SERIES COMMERCIAL GRADE AGILE MODULATORS FOR HEAD-END HEADEND SYSTEMS

FEATURES: MODELS HMA-500H & HMA-860H
60 dBmV OUTPUT TRIPLE I.F. LOOP SAW FILTERED LOW OUT OF BAND NOISE CRYSTAL REFERENCING PLL TUNING INTERNATIONAL POWER SUPPLY

[90-260VAC]

BTSC STEREO COMPATIBLE [ST-MOD] EASY TO READ LED CHANNEL DISPLAY OVER-MODULATION INDICATORS

rack mounted 550 mhz commercial grade frequency agile modulator hma-550h for head-end head end systems

MODEL# HMA-550H  [550MHz] AGILE MODULATOR - SAW FILTERED

WEB PRICE: $699.00 EACH

rack mounted agile frequency channel modulators for catv

MODEL#HMA-860H  [860 MHz] AGILE MODULATOR - SAW FILTERED

WEB PRICE: $899.00 EACH

FREQUENCY AGILE MODULATORS:

The HMA-550H and the HMA-860H are commercial grade, SAW filtered, Frequency agile modulators specifically designed to meet the highest CATV performance standards. All channels are easily selected using front panel buttons and verified with an easy to read LED channel display. The modulators feature extremely low out of band noise allowing their use in large channel capacity head-end systems. The HMA-550H and the HMA-860H modulaotrs are the ideal choice for any headend system where performance, flexibility, and reliability are required.



SAW FILTERED HEAD-END MODULATOR - SAW FILTERED

fixed channel saw filtered modulator commercial grade for headend head-end head end

WEB PRICE: $439.00 EACH

FEATURES

60 dBmV Output PLL CONTROLLED OSCILLATOR SAW FILTERED LOW OUT OF BAND NOISE I.F. LOOP [Triple I.F. Loop Available] OVER-MODULATION INDICATORS BTSC COMPATIBLE [ST-MOD]
FIXED CHANNEL SAW FILTER MODULATOR MODEL SAWM60-*

The SAWM6- is a commercial grade fixed channel modulator specifically designed for crowded head-end systems requiring high performance and reliability. The SAWM60 incorporates SAW filtering, heterodyne processing, and output band pass filtering to provide excellent rejection. The simplicity of the fixed channel design provides high reliability and stability over agile units.





HD SERIES DEMODULATORS: MODELS HDTV-ST2 & HDM-1

agile frequency demodulator hdm-1

MODEL HDM-1 AGILE FREQUENCY DEMODULATOR

WEB PRICE $219.00 EACH

hdtv-st2 digital 8vsb tuner  frequency agile demodulator digital atsc video converter

MODEL HDTV-ST2 [ATSC VIDEO CONVERTER]

WEB PRICE: $339.00 EACH

FEATURES

8 VSB DIGITAL IFF-AIR TUNER [HDTV-ST2] LOW DISTORTION AGILE INPUT SAW FILTERED [HDM-1] NON-VOLATILE MEMORY [ON CHANNEL POWER UP] FRONT PANEL LED [HDM-1] ADJUSTABLE A/V OUTPUTS [HDM-1] BTSC STEREO OUTPUT [HDM-1]
HDTV-ST2

FREQUENCY AGILE DEMODULATOR [DIGITAL]

The HDTV-ST2 digital 8VSB tuner can be used as a stand alone digital receiver delivering high resolution signals for an unsurpassed viewing experience. The HDTV-ST2 can also be used in head end environments to deliver perfect digital quality reception in your head-end system.

HDM-1

FREQUENCY AGILE DEMODULATOR [Analog]

The HDM-1 frequency agile demodulator [analog] is designed to receive and demodulate any VHF, UHF and CATV channel to base-band audio, and video. The HDM-1 uses microprocessor driven PLL synthesized tuning circuit to assure accuracy. The microprocessor controls all functions and provides for easy channel selection using front panel channel up/down buttons.





HEAD-END PRODUCTS FOR SATELLITE AND CATV

Mini Modular Head-End Systems Products

WE APPRECIATE YOUR BUSINESS

Agile Frequency Signal Processors

HEAD-END AMPLIFIERS

HEAD END COMBINERS

MULTI-SWITCHES
